Portable Power Qube (PPQ500)

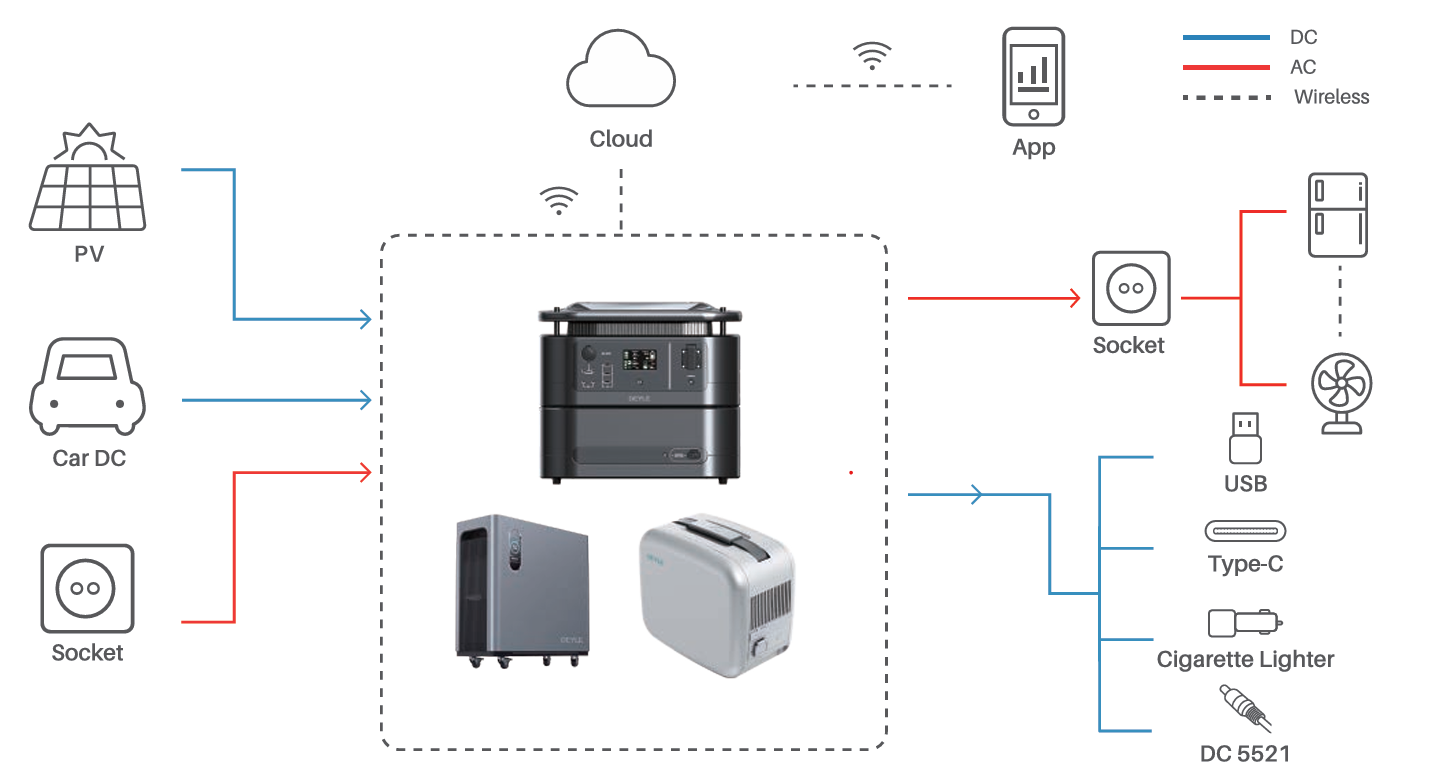

Integrates bidirectional conversion and PV input, making it suitable for diverse energy storage needs.

Supports AC, USB, and Type-C outputs, allowing users to charge a wide range of devices simultaneously.

Battery Data
Cell Material	LFP
Cycle Life	>6000 cycles (25 °C, DOD 90 %, 0,5C/0,5C, SOH 70 %)
Capacity	1004.8 Wh
Battery Level Display	4-segment LED (green LED display battery level and red LED displays alarm prompt)
Shipping SOC	50 %~60 %
Input Data
AC Input Power	500 W Max
AC Input Voltage	95~280 V, 45~65 Hz
PV Input	12~60 V, 500W Max
Output Data
Total AC Output Power	500 W Max
AC Output Voltage	220-240 V 50/60 Hz
UPS Function	10 ms
DC Output	TYPE-C 5 V/9 V/12 V, 4 A Max 20 W USB-A 5 V 2 A, 5 V 1 A Max 15 W
Environmental and Mechanical
Nominal Dimensions (W x H x D)	290 mm x 248 mm x 168 mm
Nominal Weight	10 kg
Cooling	Air cooling
Charging Temperature	0 °C~40 °C
Discharging Temperature	-10 °C~40 °C
Optimum Charging and Discharging Temperature	20 °C~30 °C
Storage Temperature	-20 °C~70 °C
Sleep Current	Less than 1mA (ARM sleep, DSP power down)
Certification
Compliance	UN 38.3
