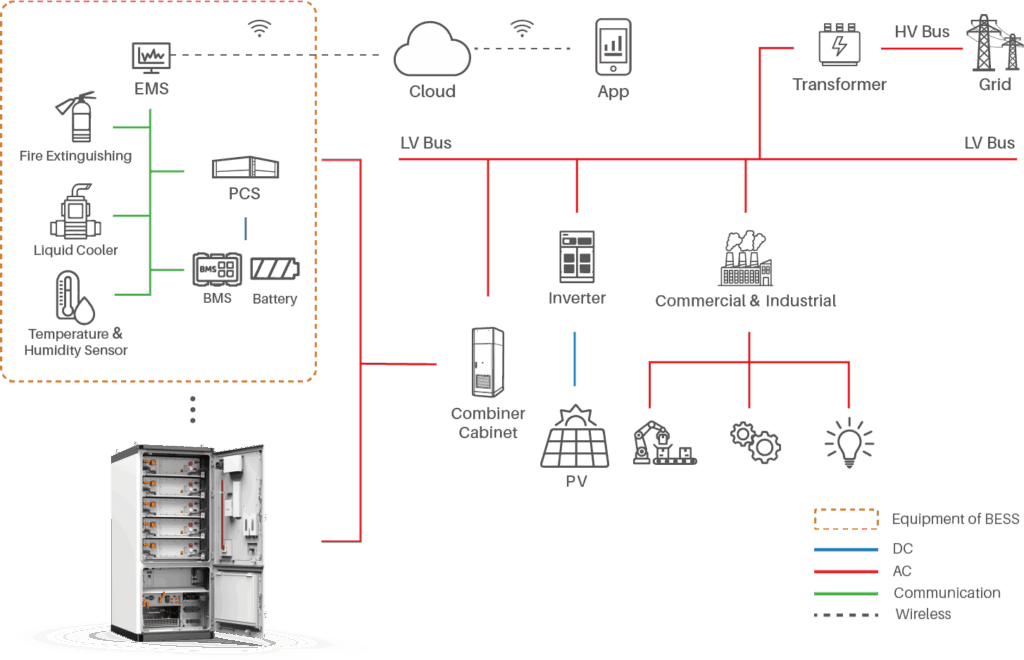

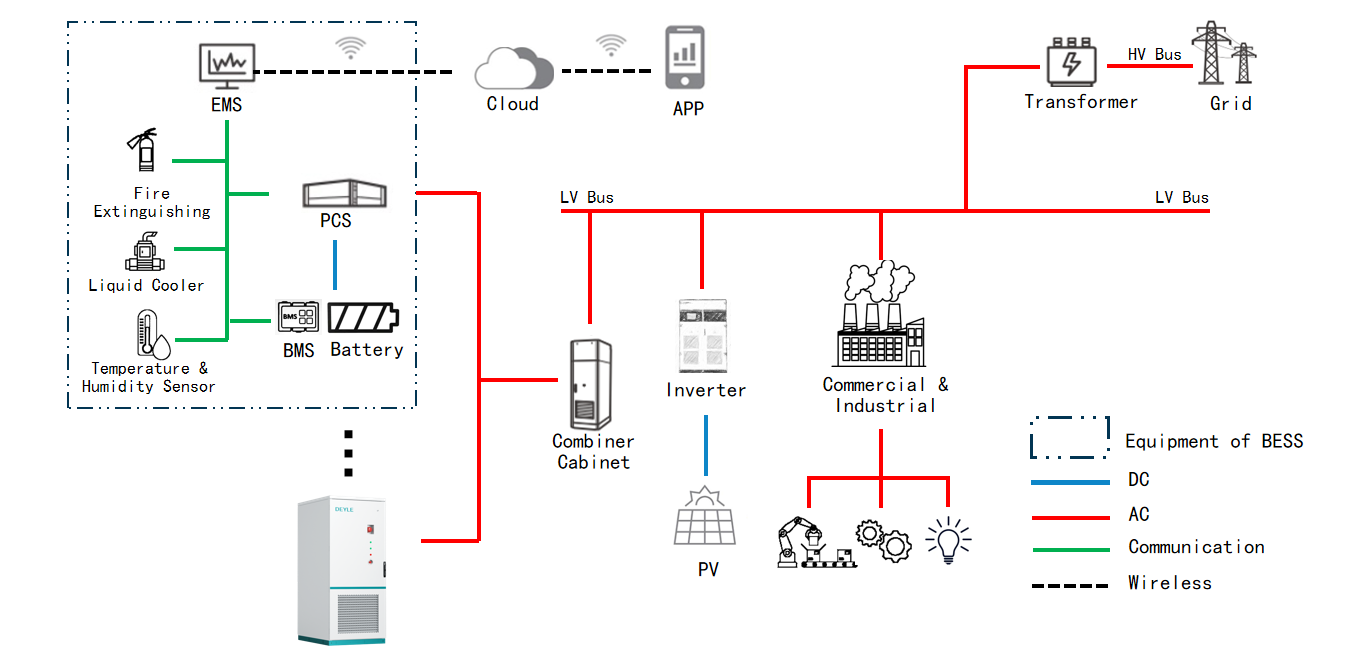

This is a typical and popular energy storage module designed for commercial and industrial applications. Each module is 120kW/241kWh, using LFP314Ah cells.The Energy Storage system is scalable by using the storage modules. System capacity can be defined by application needs and is limited to the capacity of the substantion transformer.
Commercial Industrial Energy Storage (DES-120/241L)
Battery Data
Battery Type
LFP
Nominal Voltage
768V
Operating Voltage Range
672~876V
Cell Rated Capacity
314Ah
Rated Capacity
241.15kWh
Rated Charge/Discharge Performance
0.5C
Composition
1P240S
Cycle Life
>6000 cycles (25℃, DOD 90%, 0.5P/0.5P, SOH 80%)
Thermal Management
Liquid cooling and heating
AC Output (On Grid)
Rated Output Power
120kW
Max. Output Current
190A
Rated Output Voltage
3/N/PE, 400V
Rated Output Frequency
50Hz/60Hz
Power Factor Adjustable Range
0.9 leading…0.9 lagging
DC Component
＜0.5% In
THDi
<3% (@rated power)
AC Output (Off Grid)
Rated Output Power
120kW
Max. Output Current
191A
Rated Output Frequency
50Hz
Rated Output Voltage
3/N/PE 230/400V
Unbalanced Load Capacity
100%
General Data
Ingress Protection
IP54
Fire Protection
Aerosols, water fire protection system
Relative Humidity
0~95%, non-condensing
Range of Working Temperature
-20℃~+50℃
Altitude
4000m (＞2000m derating)
Communication
RS485
Communication Protocol
Modbus
Nominal Dimension (W × H × D)
1000mm × 1330mm × 2350mm
Nominal Weight
≈2350kg
Delivery Method
Integral transportation
Certification
IEC 62619:2022, IEC 63056:2020, EN 62477-1:2012,
IEC/EN 61000, EN 50549-1, EN 50549-10, TOR, G99, UN38.3
