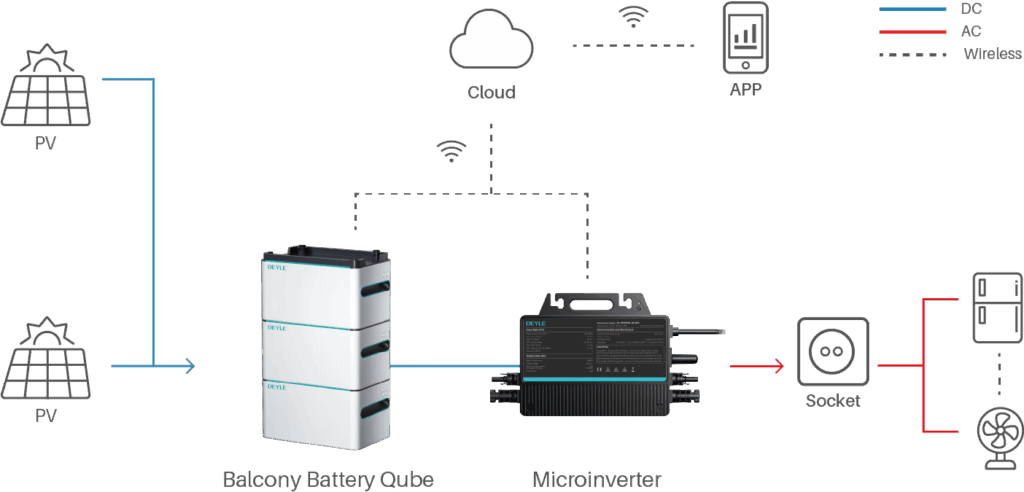

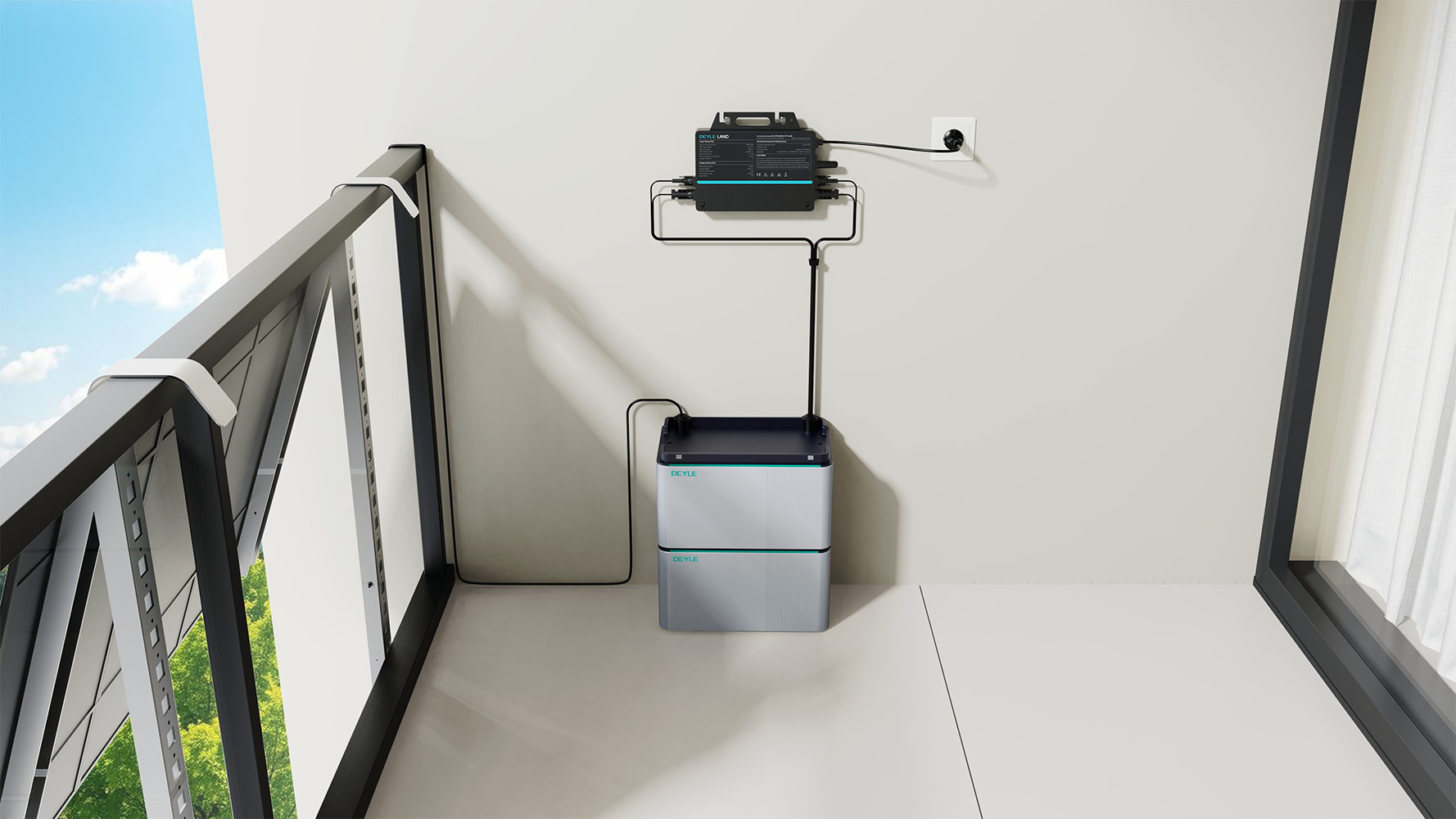

The BBQ1000 is designed for balcony PV energy storage systems, allowing surplus PV solar energy to be stored and used when PV power is insufficient or as specified by the APP. Each cube has a capacity of 1024Wh, and is scalable up to 5120Wh.

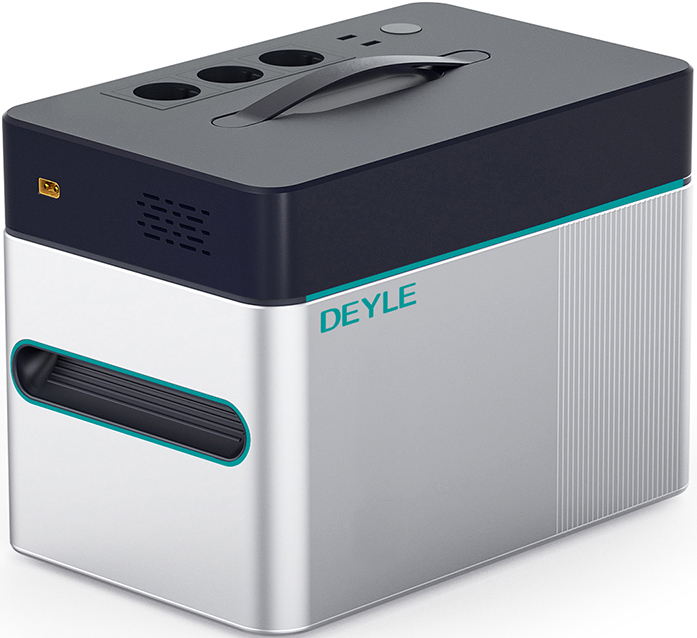

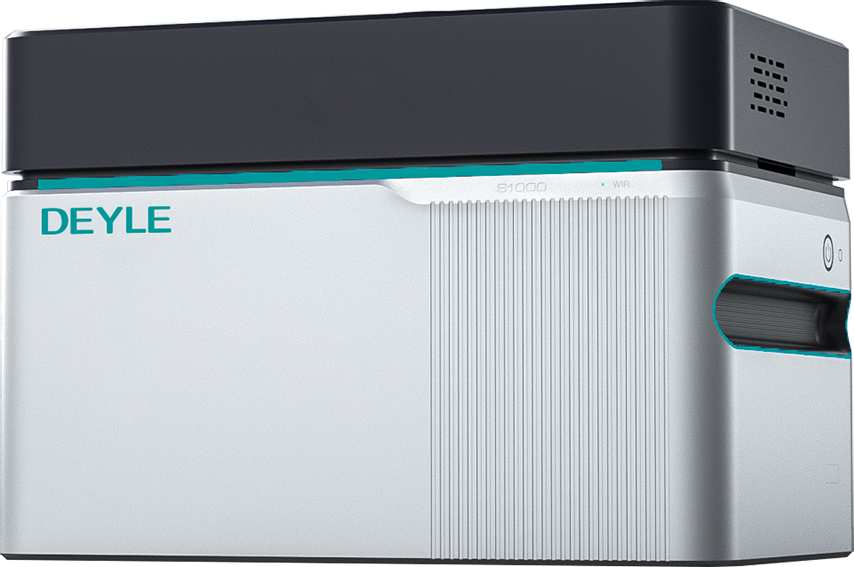

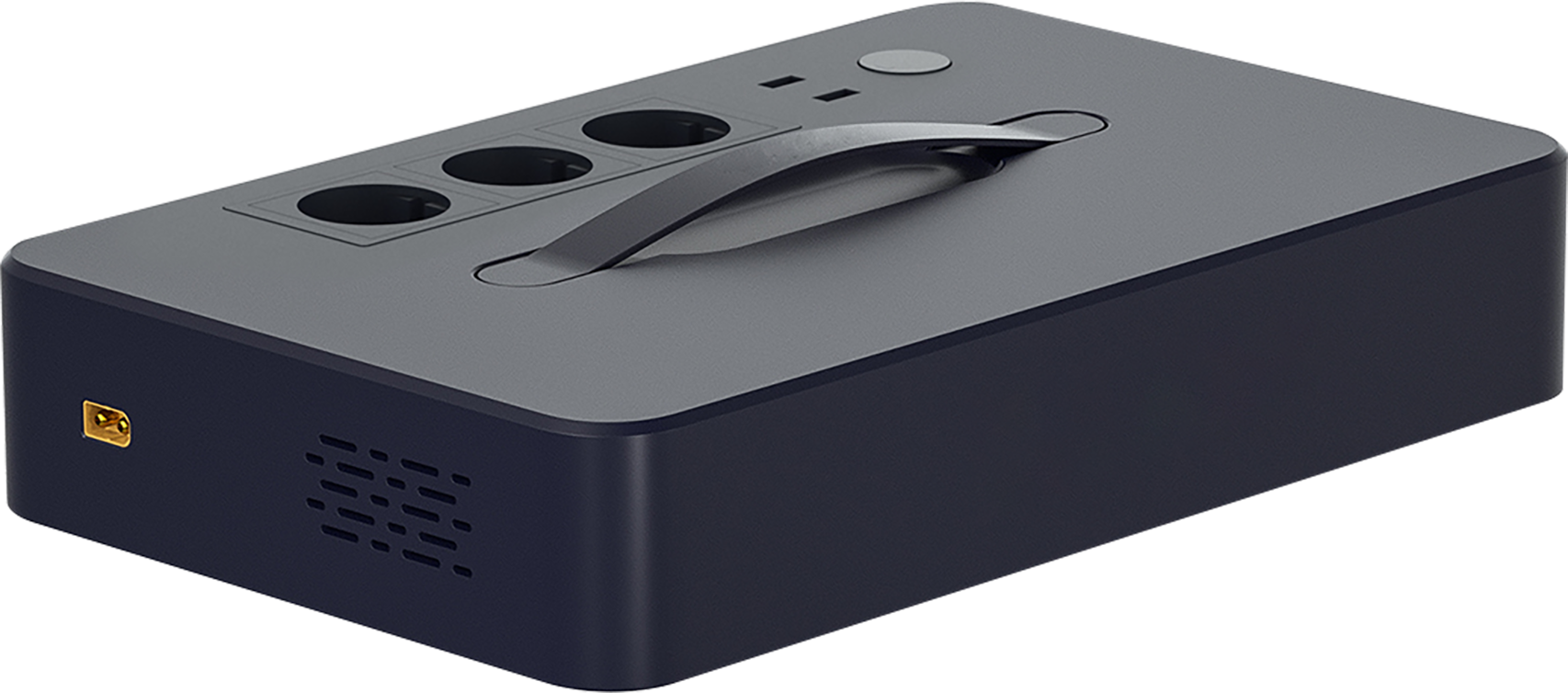

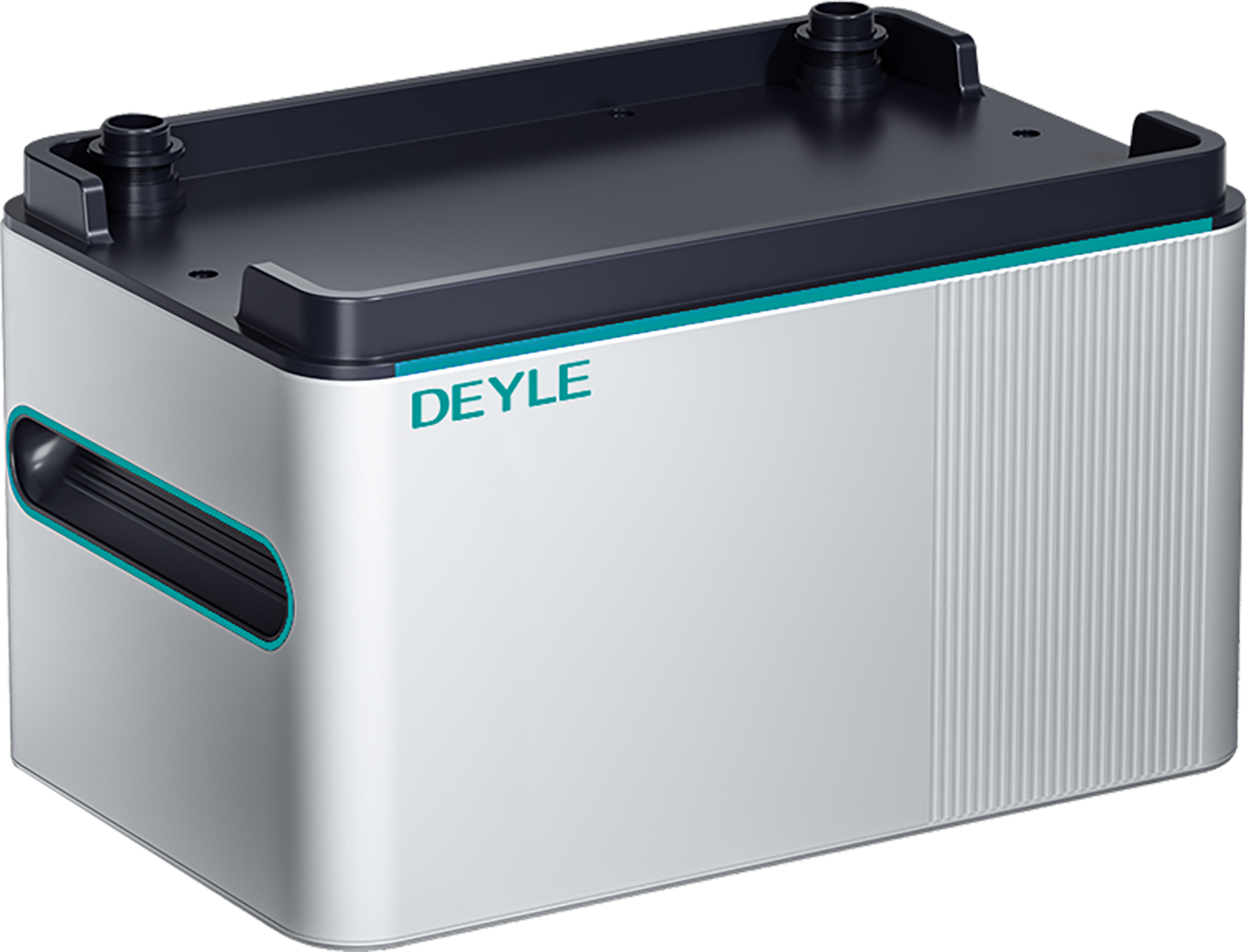

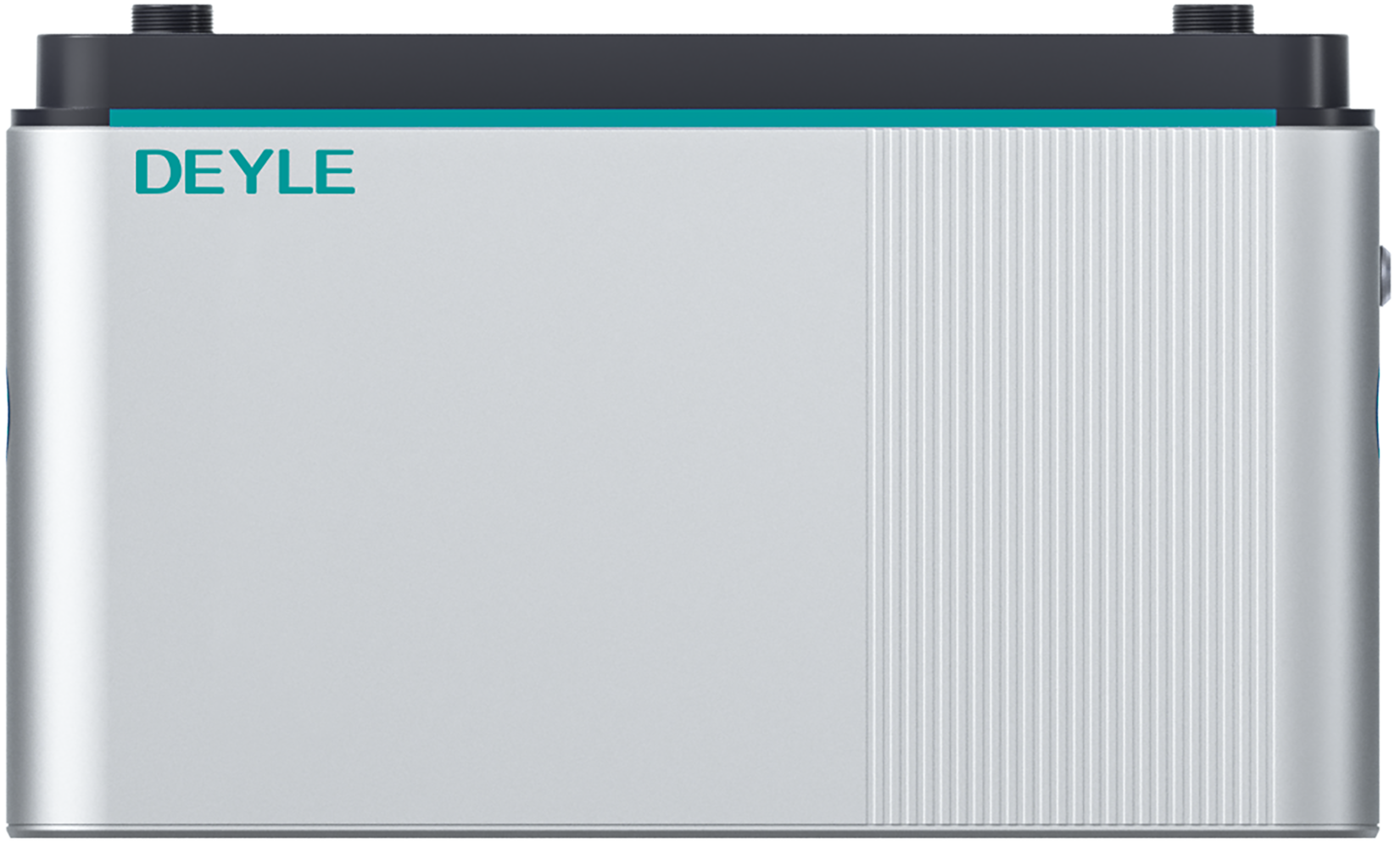

Balcony Battery Qube (BBQ1000)
Battery Data
Capacity(one pack)
1024Wh
Rated Voltage
51.2V (1P16S)
Maximum number of battery packs that can be connected in parallel
5
Cycle Life
>6000 cycles (25℃, DOD 90%, 0.5C/0.5C, SOH 70%)
Battery Type
LFP
DOD
90%
Input Data (PV)
Commonly Used Module Power
2×600W
Input Voltage
18~55V
Max. Input Current
15A × 2
Number of MPPTs
2
Efficiency
Max. Output Efficiency
97%
MPPT Efficiency
99%
Environmental and Mechanical
Communication
Wi-Fi & Bluetooth
Protection
Overcharge, over-discharge, overcurrent, high-temperature, low-temperature and short-circuit protection, PV high voltage rapid shutdown function.
Operating Temperature Range
-20℃~+45℃
Storage Temperature Range
-30℃~+65℃
Electric Heating Function
Provided
Ingress Protection
IP65
Cooling
Natural convection
Nominal Dimensions (W × H × D)
330mm × 210mm × 195mm
Nominal Weight
11kg
Certification
Compliance
IEC/EN 62109-2, EN 301489, EN 300328, EN 62368,
IEC/EN 62619, IEC/EN 61000-3-2/3, UN 38.3
