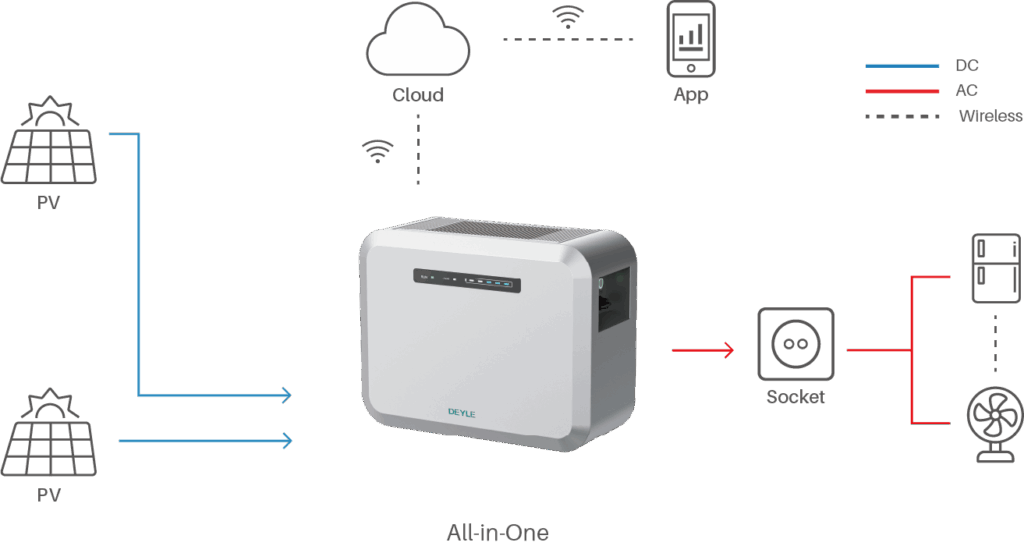

The new balcony energy storage system offers an All-in-One design for easy installation.The smart APP supports dynamic electricity pricing, real-time power calculation, and energy statistics, along with Al-generated strategies and reports for intelligent insights and optimization.

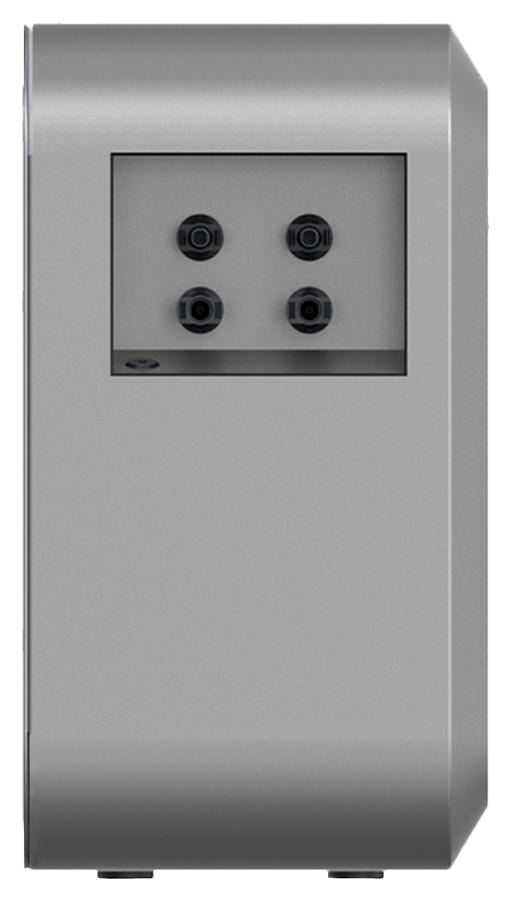

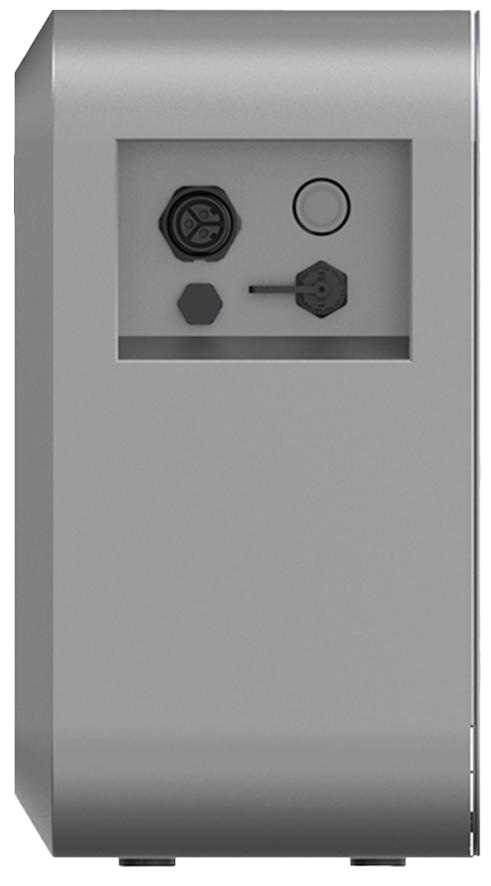

All-in-One (BEQ2000)
Battery Data
Capacity
2048 Wh
Rated Voltage
51.2V(2P16S)
Cycle Life
>6000 cycles (25℃, DOD 90%，0.5C/0.5C, SOH 80%)
Battery Type
LFP
DOD
90%
Input Data (PV)
Commonly Used Module Power
2 × 800W
Input Voltage
12~60V
Max. Input Current(single)
20A
Number of MPPTs
2
Output Data (AC)
Rated Output Power
800W
Output Voltage
220/230/240V (Single-phase)
AC Frequency Range
47.5~51Hz
Total Harmonic Distortion
Typ.<3%,Max.<5%
Power Factor(adjustable)
>0.99 default
0.9 leading…0.9 lagging
Efficiency
Max. Output Efficiency
96.5%
MPPT Efficiency
99%
Environmental and Mechanical
Communication
Wi-Fi & Bluetooth
Charging Temperature Range
-20℃~+50℃(heating film)
Discharging Temperature Range
-30℃~+55℃
Ingress Protection
IP65
Cooling
Natural convection
Nominal Dimensions (W × H × D)
308mm × 500mm × 260mm
Nominal Weight
27kg
Certification
Compliance
IEC62619, IEC62109-1, IEC61000-6-1/3, IEC61000-3-2/3, ETSI EN301489-1/17, ETSI EN300328; UN 38.3,RoHS2.0;
EN50549-10, VDE4105, VDE 0124, OVE-directive R25:2020-3 TOR Erzeuger Type A, EN 50549-1/10,NEN EN50549-1+BWBR0037940 Netcode, NF50549-10, EN 50549-1+C10/11:2021
